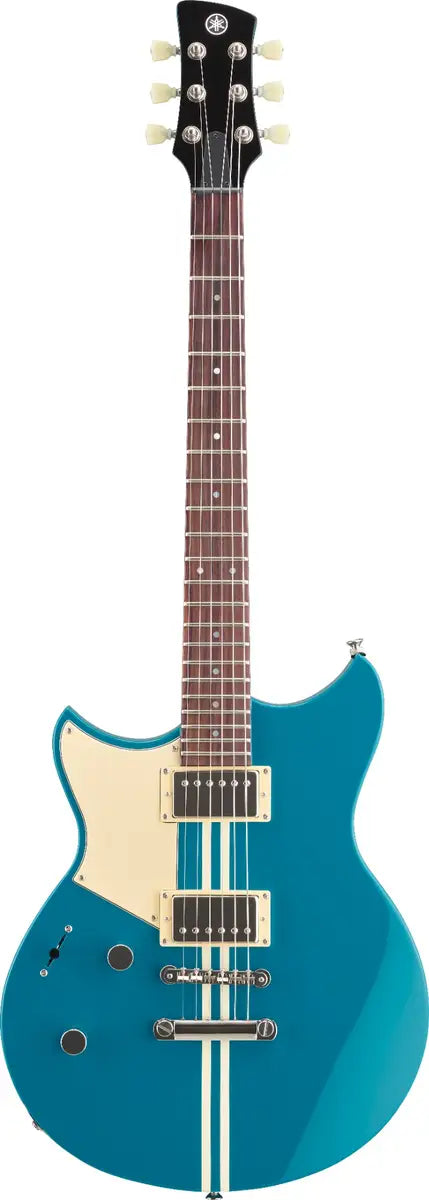

Yamaha Revstar Gen2 Elements Guitar Left Handed - Swift Blue

Originally launched in 2015, Revstar was the first new electric guitar series from Yamaha in over a decade. A completely new lineup for 2022 offers three tiers, chambered bodies on every model, new racing-inspired finishes, new switching options, and left-handed models.

The RSE20 features five café racer-inspired finish options, a chambered body, dual Alnico V humbuckers, and a push/pull Dry Switch high-pass filter for additional tonal versatility.

CHAMBERED BODIES
Every new Revstar features a chambered body designed with Yamaha’s Acoustic Design process to sculpt tone and increase resonance while reducing weight and optimising balance.

5-WAY SWITCHING
Standard and Professional models offer 5-way switching. In positions 2 and 4, our circuit slightly delays the opposite pickup for a new take on classic “in between” sounds.

FOCUS SWITCH
The push/pull Focus Switch on Standard and Professional models activates a passive boost that darkens highs while increasing bass and mids for an effect like overwound pickups.

CARBON REINFORCEMENT (Standard and Professional models only)
Revstar Standard and Professional models feature carbon-reinforced necks. Professional models also add carbon reinforcement to the body for weight relief, vibration transfer, and tone shaping.

DRY SWITCH
Revstar Element models feature our push/pull Dry Switch high-pass filter circuit that was first introduced with the original Revstar series.

INITIAL RESPONSE ACCELERATION (I.R.A.)
Revstar Professional guitars receive Yamaha’s I.R.A. treatment process which applies specifics vibrations to release stresses in the instrument for a “played in” tone.

Spec:

Construction Set-in
Scale Length 24-3/4" (628.6mm)
Body Materials Chambered Mahogany
Body Finish Gloss Polyurethane
Neck Materials 3pc Mahogany
Neck Finish Satin Polyurethane
Fingerboard Materials Rosewood
Fingerboard Radius 12" (304.8mm)
Fret Wire Jumbo
Number of Frets 22
Neck Width @0 Fret / 12th Fret 41.9 / 56.8 mm
Thickness @1st Fret / 12th Fret 21.0 / 23.9 mm
Nut Materials High-Strength PPS
Neck Pickup VH3n (Humbucker / Alnico V)
Bridge Pickup VH3b (Humbucker / Alnico V)
Controls
Master Volume, Master Tone
(Push-Pull, "Dry Switch")
Pickup Switch 3-Position Lever Switch
Bridge Tune-O-Matic
String spacing 10.5 mm
Tailpiece Stopbar
Tuning Machines Die-Cast
Pickguard 3-ply (Cream or Black)
String gauge Elixir Nanoweb Light / 0.010-0.046
Case Not Included
